Introduction to CXL Technology
CXL 2.0 vs CXL 3.0
CXL 3.2: Device Manageability and Monitoring Enhancements
Applications of CXL in Data Centers
Future of CXL Technology
Compute Express Link (CXL) is a high-speed, CPU-to-device interconnect standard designed to alleviate memory bottlenecks in modern systems. It operates on the PCI Express (PCIe) physical interface, leveraging PCIe's infrastructure to deliver very high bandwidth and low latency communication between a host processor and attached devices. Unlike conventional PCIe (which treats devices as peripherals with explicit I/O transactions), CXL enables a cache-coherent link that lets processors interact with accelerators and memory expanders via load/store memory semantics. This means a CXL-connected device (such as a memory module or GPU) can be accessed as if it were part of the system memory, with hardware ensuring consistency between the CPU's memory space and the device's memory. In essence, CXL extends the memory hierarchy beyond the motherboard, allowing external devices to participate in the memory subsystem while maintaining coherence and low latency.
The emergence of CXL is driven by growing demands in cloud computing, big data analytics, artificial intelligence (AI), and other data-intensive applications. Traditional DDR memory channels cannot easily keep up with the increasing number of CPU cores and the need for more memory capacity, leading to a widening gap between processing capability and memory bandwidth. This imbalance results in underutilized CPU potential and memory bottlenecks that hamper overall performance. Moreover, data centers face efficiency issues with memory utilization: modern servers often have a significant portion of expensive DRAM sitting idle (“stranded” memory) due to static allocation per server. According to industry reports, memory can account for about half of a server’s cost, yet roughly 25% of DRAM capacity remains unused on averager. By enabling a decoupling of memory from individual servers, CXL allows the creation of a memory pool that multiple systems can draw from dynamically. This shared pool approach increases memory utilization and can lower costs by reducing over-provisioning – for example, Microsoft found that adopting CXL-based memory pooling could cut total memory needed by around 10%, yielding a 5% reduction in overall server cost. In effect, CXL treats memory as a flexible resource (much like storage in a SAN), which data centers can allocate on demand to whatever workload needs it. This capability is the “last leg” of infrastructure disaggregation: it promises to significantly improve efficiency and enable applications to access far larger memory spaces than any single server could provide economically.
CXL has evolved rapidly, and CXL 3.0 introduces major improvements over its predecessor, CXL 2.0, in several areas:
Higher Bandwidth & Backward Compatibility: Built on the PCIe 6.0 PHY, doubling the lane speed from 32 GT/s (in CXL 2.0 on PCIe 5.0) to 64 GT/s per lane. This effectively doubles the available bandwidth to devices, yet achieves it without adding communication latency – latency remains on par with CXL 2.0. Importantly, the 3.0 standard is fully backward-compatible with earlier CXL 2.0/1.x devices, protecting existing investments while boosting performance.
Memory Pooling vs. Memory Sharing: CXL 2.0 introduced the concept of memory pooling, wherein multiple hosts could attach to a common memory device (or pool of devices) but each host was allocated a distinct portion of that memory (no two hosts would actively share the same bytes. The 3.0 specification goes further by enabling true shared memory across hosts. With enhanced coherency in version 3.0, multiple hosts can simultaneously access the same memory segment and maintain a consistent view of the data. In practice, this means one physical pool of memory can be shared cooperatively among servers, rather than just partitioned between them, something not possible under 2.0 without software coordination.
Fabric and Scalability: While CXL 2.0 supported only a single-level switching topology (essentially a fan-out from one host to devices), the 3.0 standard introduces advanced fabric capabilities. It supports multi-level switch cascades and flexible topologies (such as spine-leaf networks) that can span multiple servers or entire racks. The result is a massively scalable CXL network: up to 4,096 devices/ports can communicate in one fabric, whereas CXL 2.0 was limited to on the order of 16 endpoints on a single switch. This expansion allows CXL to scale from within a single server to an entire data center fabric of hosts, accelerators, and memory devices all interconnected with load-store coherence.
Peer-to-Peer Communication: Another key enhancement in the 3.0 generation is support for direct peer-to-peer (P2P) communication between devices. Previously, in CXL 2.0 (and standard PCIe), virtually all data transfers between devices (say, between two GPUs or a storage device and an FPGA) had to be mediated by the host CPU or main memory, incurring overhead. This allows devices to read and write to each other’s memory or caches over the CXL bus without involving the host in the data path. This means, for example, a smart NIC or an accelerator could send data directly to a GPU’s memory. Such P2P transfers significantly improve throughput and reduce latency compared to routing everything via the CPU, essentially making this approach much faster for distributed data sharing than even techniques like RDMA.
Figure 1 - CXL protocol 3.2 memory expansion devices
Building on the peer-to-peer and fabric advances of CXL 3.0, the CXL Consortium released CXL 3.2 in December 2024 to fortify the standard’s management, reliability and observability features. Rather than pushing raw link speeds higher, this update delivers a rich suite of device-level enhancements—ranging from hardware-embedded telemetry and self-repair to more granular error reporting and security-protocol validation—all designed to simplify large-scale memory disaggregation and accelerate production deployments in modern data centers
Hot-Page Monitoring Unit (CHMU) Instead of relying on host-side heuristics, CXL 3.2 embeds CHMU counters directly in each memory device. These hardware “hot-page” trackers tally real accesses (excluding cache hits) at software-configurable granularities (“units”). When a unit’s count exceeds its epoch threshold, it’s queued in a circular “Hotlist” that software can poll or be interrupted on. The result is precise, real-time workload insight with zero host overhead—streamlining tiered-memory analytics and lowering TCO.

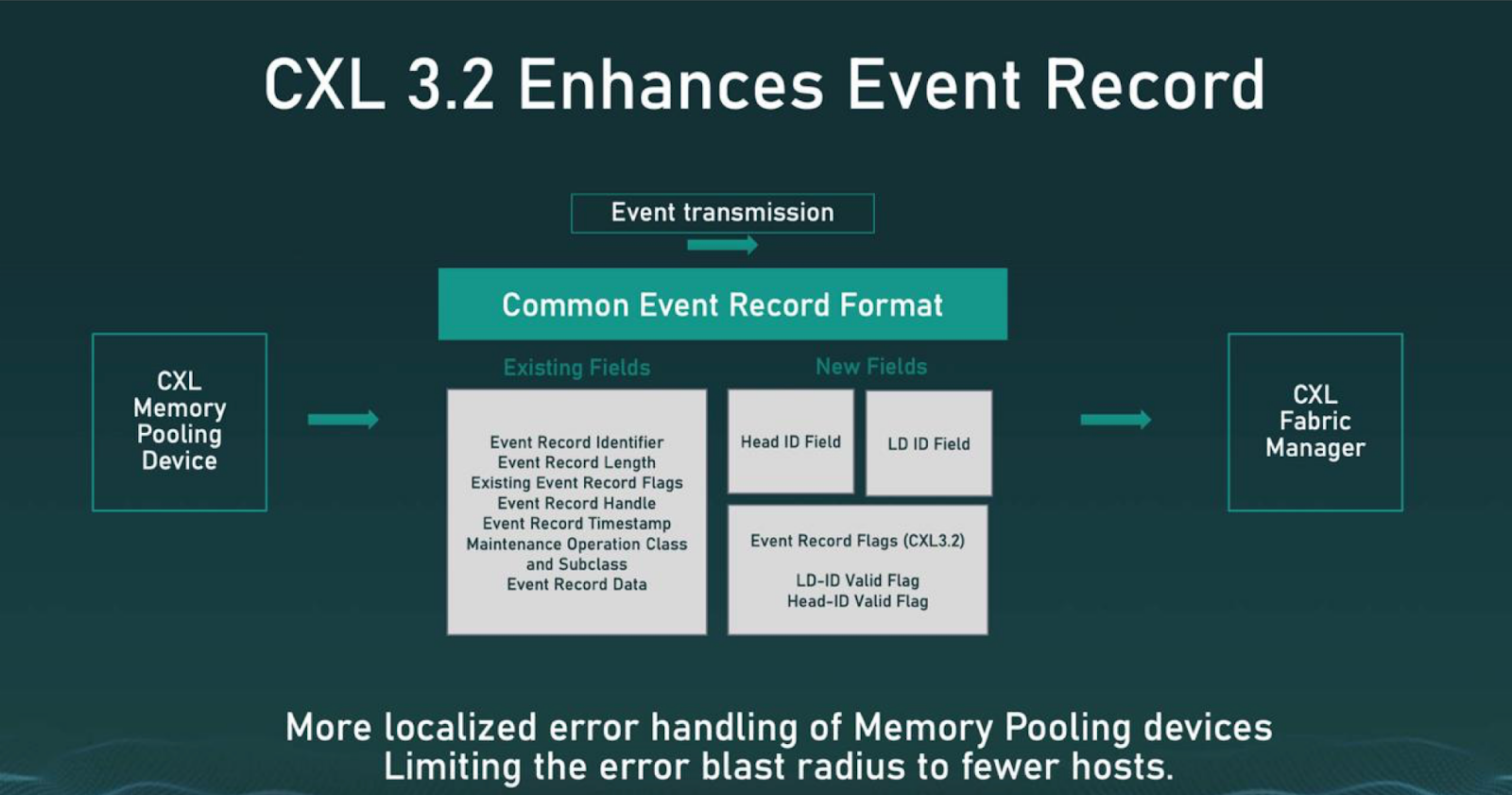

Enhanced Event Record Format The common Event Record now carries LD-ID and Head-ID valid flags plus expanded fields for fault isolation. A fabric manager can thus confine error “blast radii” to individual modules, improving cluster resilience and enabling automated, fine-grained recovery actions when things go wrong.
Hardware Post Package Repair (hPPR) Memory modules gain the ability to self-heal faulty cells during initialization via hardware Post Package Repair. This OS-transparent RAS feature extends device longevity and simplifies serviceability by catching and fixing errors before the system ever boots.
Built-in Performance Counters CXL 3.2 adds a suite of CXL.mem telemetry events and counters that feed usage data straight to the OS or applications. With these metrics in hand, software can dynamically rebalance hot/cold pages and tune pools on the fly—no external profiling tools required.
Meta-bit Storage for HDM-H A dedicated metadata region (“meta-bits”) for Host-only Coherent Host-Managed memory lets the host discover and adjust metadata capacity at runtime. This yields more efficient DRAM utilization and flexible data layout on CXL devices.
TSP Interoperability Testing Official CXL 3.2 test suites now include Trusted Security Protocol compliance checks, ensuring consistent behavior across diverse TEEs and accelerator implementations. These validations strengthen confidence in confidential computing workloads on CXL memory and devices.
With these new features come concrete gains in raw performance and scale. The jump to PCIe 6.0’s physical layer doubled the per-lane transfer rate, which translates to roughly 2× the bandwidth of the previous generation. In practical terms, a CXL 3.0 link using 16 lanes (x16) can deliver on the order of 256 GB/s of throughput, up from ~128 GB/s with CXL 2.0 – a substantial increase in data delivery capability for memory and accelerator devices. Equally important, this speed-up comes without any increase in latency; there is no increase in transaction latency compared to 2.0, on the order of a few hundred nanoseconds for a memory access. (In fact, a typical CXL.mem access might incur ~100–200 ns of additional delay versus local DRAM, comparable to a NUMA remote node access, and this overhead remains essentially unchanged from CXL 2.0.)
Scalability metrics also improved dramatically. Under CXL 2.0, a single switch could connect up to 16 hosts to a pool of devices, which enabled memory disaggregation at the rack level. By contrast, the multi-level fabric of version 3.0 pushes this limit into the thousands: the specification supports addressing up to 4,096 nodes (which include hosts, accelerators, and memory devices) in a unified fabric. This capability means an order-of-magnitude leap in the size of composable systems – effectively, entire clusters can be linked via CXL. In terms of memory capacity, CXL 2.0’s single-level pooling already allowed enormous pools (theoretical support for at least ~1.28 PB of attached memory) and the 3.0 spec can scale that even further with additional switching layers. Such petabyte-scale pools of memory can be configured and shared across many servers. Despite these massive increases in capacity and connectivity, the new CXL standard remains compatible with prior-gen devices and hosts, meaning new components can seamlessly operate in existing ecosystems.
One of the most transformative uses of CXL in data centers is expanding and pooling memory to optimize application performance. With CXL-attached memory, servers are no longer strictly limited to the DIMMs installed locally – they can access a much larger pool of memory provided by external CXL memory devices or appliances. This enables memory-intensive workloads to keep vastly larger datasets in RAM, avoiding the slowdowns of frequent disk access or network storage I/O. For example, CXL 2.0 already allowed multiple servers to attach to a shared pool of memory of potentially petabyte scale. Now, with true memory sharing available, even a single huge dataset can be concurrently accessed by multiple hosts in a cluster, all sharing a coherent view of that data. In practical terms, this could allow new approaches in high-performance computing or AI: an entire climate simulation or a massive machine learning model could reside wholly in memory, with several compute nodes working on it at once, rather than partitioning the problem into smaller chunks. By having the full dataset immediately accessible in shared memory, these applications can eliminate expensive data shuffling and page faults. Indeed, analysts note that memory pooling/sharing via CXL lets even “memory-hungry” applications work on data sets that previously exceeded any single server’s memory capacity – all without resorting to slow storage I/O.
Beyond raw performance, CXL helps improve memory efficiency. Instead of each server over-provisioning memory to handle peak loads (leaving a lot of RAM idle most of the time), data centers can use CXL to dynamically distribute memory where it’s needed. This addresses the stranded memory problem: one server’s unused RAM can be reclaimed to serve another workload via the CXL fabric. As noted earlier, pooling memory resources in this way has been shown to reduce the total memory footprint required across servers. Companies like Meta and Microsoft have been actively researching techniques to maximize these benefits. Meta, for instance, introduced a Linux kernel extension called Transparent Page Placement (TPP) to automatically migrate “hot” (frequently used) memory pages to local DRAM and offload “cold” (infrequently used) pages to CXL-connected memory. This kind of intelligent tiered memory management is crucial because CXL memory, while fast, may have slightly higher latency than direct-attached DDR. By proactively shuffling data based on access patterns (using tools like Meta’s TPP and memory monitors), one can mitigate latency impacts and still reap the capacity benefits of CXL memory. In Meta’s tests, such an approach improved application performance by roughly 18% compared to the default Linux memory management, thanks to better use of CXL “cold” memory without letting it slow down the “hot” workloads. These results highlight that with the right software optimizations, CXL-enabled systems can approach the performance of pure DRAM even at much larger memory scales.
To fully capitalize on CXL’s capabilities in data center environments, system architects are also focusing on efficient management and integration of this technology. One aspect of this is robust fabric management. CXL 3.0 introduces the concept of a fabric manager (also known as a structure manager) that oversees the CXL resources in a network. This manager is responsible for tasks like coordinating memory allocation from a shared pool and orchestrating devices among multiple hosts. A well-designed CXL fabric manager allows for advanced features such as hot-plugging or hot-swapping memory devices and accelerators, dynamic reconfiguration of resource assignments, and load balancing of memory across hosts – all without requiring system downtime. Such capabilities improve operational efficiency: hardware resources (like a CXL memory module) can be shifted to whichever server needs them at the moment, and returned to the pool when not in use, maximizing utilization across the cluster.
Another area of efficiency gain comes from changes in how software can use the interconnect. With new peer-to-peer communication now available, some data workflows can be streamlined significantly. For instance, consider inter-process communication or distributed computing tasks: traditionally, different servers (or accelerators) might exchange data by sending network messages or writing to shared storage, which is relatively slow. Multiple processors can now communicate through a shared memory region, essentially trading messages by writing/reading the same memory bytes in a globally accessible address space. This removes a lot of software overhead and latency, since updates propagate via hardware coherency rather than explicit data transfers. Similarly, the peer-to-peer DMA capability means an accelerator can directly deposit results into another device’s memory. A storage controller could, for example, use CXL to write data straight to an AI accelerator’s memory buffer without involving the CPU or main memory at all. This not only speeds up the operation but also frees the host CPU to focus on other tasks. In sum, CXL allows the bypassing of traditional bottlenecks in data movement – improving both speed and CPU efficiency for complex workflows.
It’s worth noting that while current CXL technology already brings these advantages, ongoing improvements in both hardware and software will further enhance CXL efficiency. Industry experts anticipate that as PCIe 7.0 arrives (paving the way for a future CXL 4.0), it will significantly reduce latency and increase bandwidth even more, which will help close the gap between CXL memory and local memory performance. In the meantime, software strategies like advanced memory schedulers, cache coherence protocols, and adaptive page placement will continue to play a vital role in optimizing CXL usage. The convergence of these efforts – smarter management software plus ever-faster CXL hardware – promises to make disaggregated memory and heterogeneous computing via CXL a mainstream reality in coming years.

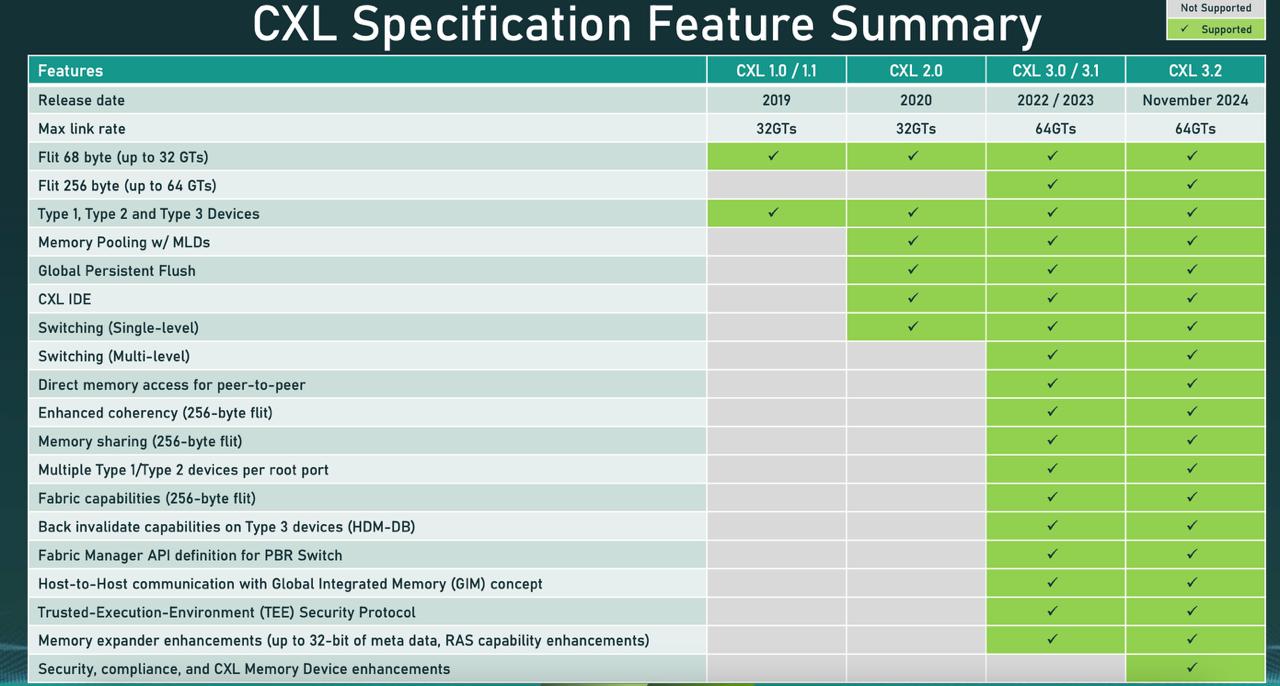

Figure 2 - CXL Specification Feature Summary
Looking ahead, the roadmap for CXL suggests even more ambitious capabilities. The CXL Consortium has been quick to iterate, and observers predict that CXL 4.0 will align with the next generation PCIe 7.0 standard, likely doubling the link speed yet again (from 64 GT/s to 128 GT/s per lane). For context, the CXL 3.0 spec rides on PCIe 6.0 (with a doubling of bandwidth), so it is natural to expect CXL 4.0 on PCIe 7.0 will continue that pattern of exponential bandwidth growth. This means we could see another 2× jump in throughput in the mid-2020s, which would push per-slot bandwidth into the range of ~500 GB/s. Such bandwidth could further diminish the distinction between local and remote resources in terms of performance. It’s also expected that CXL will maintain backward-compatibility in future revisions, just as 3.0 did, so that the ecosystem can evolve without leaving behind earlier devices.
Beyond raw speed, future CXL versions are likely to incorporate deeper support for heterogeneous and composable infrastructure. The CXL Consortium has already absorbed technologies from other standards (notably Intel and HPE’s Gen-Z fabric and IBM’s OpenCAPI interface), and these contributions may influence CXL 4.0 features. For example, Gen-Z was known for its memory-centric switching and advanced fabric management, while OpenCAPI offered high bandwidth and low latency links for accelerators. By folding in these technologies, CXL can potentially extend its reach to new use cases and improve capabilities like memory coherency, security, and long-distance connectivity in future iterations. We might see enhancements around more flexible coherency modes (perhaps enabling even inter-node or multi-socket coherence across a CXL fabric), better quality-of-service controls for shared memory, and integrated encryption/security for memory traffic as standard features in upcoming specs.
Importantly, CXL’s rapid adoption by nearly all major industry players suggests it will become the de facto standard for connecting processors, memory, and accelerators in data centers. Already, server CPUs from Intel and AMD support CXL, and device makers are following suit. It’s expected that future GPUs and specialized accelerators (for example, next-generation AI chips from companies like NVIDIA) will incorporate CXL interfaces to enable a unified memory space shared with CPUs. In the “CXL 4.0 and beyond” era, we can envision a fully composable data center where pools of CPUs, memory, and accelerators are all linked via a CXL fabric. In such an architecture, a given workload might dynamically be allocated a certain number of compute cores, a chunk of memory from the pool, and perhaps some GPU or FPGA acceleration – all temporarily stitched together via CXL and then reallocated when the job is done. This paradigm could revolutionize data center performance and flexibility, allowing resources to be utilized with unprecedented efficiency. While specifics of CXL 4.0 will only be confirmed upon its release, the trajectory is clear: Compute Express Link is set to play a central role in future high-performance systems, evolving to meet the ever-growing demands for bandwidth, low latency, and resource agility in the data center.
